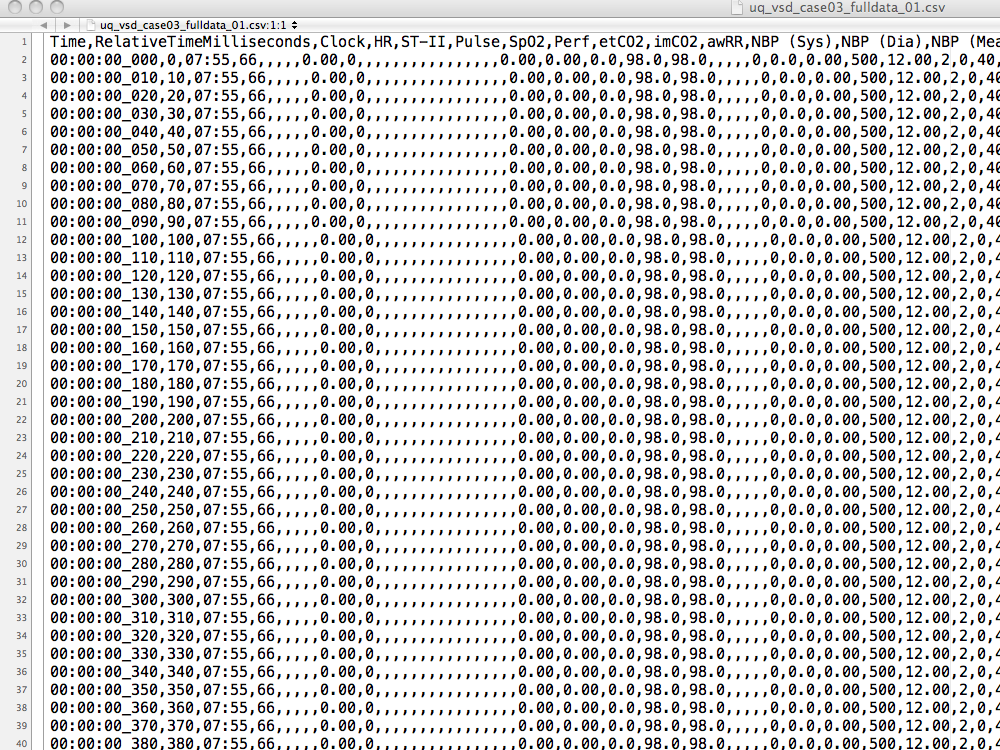

The format and contents of the Full Data files are described in the table shown below. The same data was used to generate the Trend Data, Waveform Plots, and Case Plots.
Columna | Excelb | Parameterc | Units | Exampled | Source | Type | Description |
---|---|---|---|---|---|---|---|
1 | A | Time | hh :mm :ss _mil | 01:23:53_230 | - | Numerical | Timestamp that the row of data represents, where hh is hours, mm is minutes, ss is seconds, mil is milliseconds. All cases begin at time 00:00:00_000. |
2 | B | RelativeTimeMilliseconds | milliseconds | 5033230 | - | Numerical | Time parameter in milliseconds. For example, the timestamp 01:23:53_230 corresponds to 5033230 milliseconds. All cases begin at time 0 milliseconds. |
3 | C | Clock | hh :mm | 13:54 | - | Numerical | Clock time that was displayed on the monitor during data collection, where hh is hours in 24-hour format, and mm is minutes. Note: this clock time does not correspond to the Time /RelativeTimeMilliseconds parameters. |
4 | D | HR | bpm | 72 | MP70, MP30 | Numerical | Heart rate derived from the ECG sensor. |
5 | E | ST-II | - | 0.3 | MP70, MP30 | Numerical | ST segment index derived from the ECG sensor. |
6 | F | Pulse | bpm | 80 | MP70, MP30 | Numerical | Pulse rate (heart rate) derived from pulse oximetry. |
7 | G | SpO2 | % | 100 | MP70, MP30 | Numerical | Blood oxygen saturation derived from pulse oximetry. |
8 | H | Perf | - | 8.1 | MP70, MP30 | Numerical | Perfusion index derived from pulse oximetry. |
9 | I | etCO2 | mm Hg | 27 | MP30 | Numerical | End-tidal CO2 measured using sidestream capnography. |
10 | J | imCO2 | mm Hg | 0 | MP30 | Numerical | Inspired minimum CO2 measured using sidestream capnography. |
11 | K | awRR | breaths per minute | 12 | MP30 | Numerical | Respiratory rate derived from capnography. |
12 | L | NBP (Sys) | mm Hg | 139 | MP70, MP30 | Numerical | Systolic blood pressure measured with a non-invasive blood pressure cuff. |
13 | M | NBP (Dia) | mm Hg | 88 | MP70, MP30 | Numerical | Diastolic blood pressure measured with a non-invasive blood pressure cuff. |
14 | N | NBP (Mean) | mm Hg | 99 | MP70, MP30 | Numerical | Mean blood pressure measured with a non-invasive blood pressure cuff. |
15 | O | NBP (Pulse) | bpm | 85 | MP70, MP30 | Numerical | Pulse (heart) rate measured using the non-invasive blood pressure cuff. |
16 | P | NBP (Time Remaining) | seconds | 140 | MP70, MP30 | Numerical | Time remaining in seconds until the next non-invasive blood pressure sample is taken. |
17 | Q | ART (Sys) | mm Hg | 134 | MP70 | Numerical | Instantaneous systolic blood pressure derived from the invasive arterial blood pressure. |
18 | R | ART (Dias) | mm Hg | 78 | MP70 | Numerical | Instantaneous diastolic blood pressure derived from the invasive arterial blood pressure. |
19 | S | ART (Mean) | mm Hg | 101 | MP70 | Numerical | Instantaneous mean blood pressure derived from the invasive arterial blood pressure. |
20 | T | etDES | % | 5.75 | MP70 (AGM) | Numerical | End-tidal desflurane gas concentration measured from the airway. |
21 | U | inDES | % | 6.50 | MP70 (AGM) | Numerical | Inspired desflurane gas concentration measured from the airway. |
22 | V | etISO | % | 0.75 | MP70 (AGM) | Numerical | End-tidal isoflurane gas concentration measured from the airway. |
23 | W | inISO | % | 1.75 | MP70 (AGM) | Numerical | Inspired isoflurane gas concentration measured from the airway. |
24 | X | etSEV | % | 1.45 | MP70 (AGM) | Numerical | End-tidal sevoflurane gas concentration measured from the airway. |
25 | Y | inSEV | % | 2.85 | MP70 (AGM) | Numerical | Inspired sevoflurane gas concentration measured from the airway. |
26 | Z | etN2O | % | 0 | MP70 (AGM) | Numerical | End-tidal nitrous oxide gas concentration measured from the airway. |
27 | AA | inN2O | % | 0 | MP70 (AGM) | Numerical | Inspired nitrous oxide gas concentration measured from the airway. |
28 | AB | MAC | % | 0.8 | MP70 (AGM) | Numerical | Minimum alveolar concentration of the current anesthetic gas being used (desflurane/isoflurane/sevoflurane). |
29 | AC | etO2 | % | 45 | MP70 (AGM) | Numerical | End-tidal oxygen concentration measured from the airway. |
30 | AD | inO2 | % | 50 | MP70 (AGM) | Numerical | Inspired oxygen concentration measured from the airway. |
31 | AE | Temp | ° C | 36.4 | MP70 | Numerical | Body temperature measured using nasal probe. |
32 | AF | BIS | [0, 100] | 54 | MP70 (BIS) | Numerical | Bispectral index (BIS) monitor value for depth of anaesthesia. |
33 | AG | SQI | % | 54 | MP70 (BIS) | Numerical | Signal quality index (SQI) for the BIS monitor. |
34 | AH | EMG | - | 37 | MP70 (BIS) | Numerical | Electromyography (EMG) indicator from the BIS monitor. |
35 | AI | Tidal Volume | mL | 475 | Aestiva/5 | Numerical | Tidal volume of the previous breath measured by the ventilator. |
36 | AJ | Minute Volume | L | 5.6 | Aestiva/5 | Numerical | Current minute volume measured by the ventilator. |
37 | AK | RR | breaths per minute | 12 | Aestiva/5 | Numerical | Current respiratory rate measured by the ventilator. |
38 | AL | Set Tidal Volume | mL | 500 | Aestiva/5 | Numerical | Target tidal volume programmed in the mechanical ventilator. |
39 | AM | Set RR | breaths per minute | 12 | Aestiva/5 | Numerical | Target respiratory rate programmed in the ventilator. |
40 | AN | Set I:E ratio | 1:eee.e | 2.0 | Aestiva/5 | Numerical | Target Inspiration:Expiration ratio programmed in the ventilator. For example, a value of 2 represents an I:E ratio of 1:2 . |
41 | AO | Set PEEP | cm H2O | 4 | Aestiva/5 | Numerical | Target positive end-expiratory pressure (PEEP) programmed in the ventilator. |
42 | AP | Set PAWmax | cm H2O | 40 | Aestiva/5 | Numerical | Target maximum airway pressure applied during positive-pressure ventilation programmed in the ventilator. |
43 | AQ | Set PAWmin | cm H2O | 15 | Aestiva/5 | Numerical | Target minimum airway pressure applied during positive-pressure ventilation programmed in the ventilator. |
44 | AR | Set Mechanical Ventilation | null | 0 | 1 | 1 | Aestiva/5 | Numerical | Whether the anesthesia machine's ventilator is turned on (1 ), turned off (0 ), or the status is not available (null ). |
45 | AS | Tidal Volume Exp (Spiro) | mL | 510 | MP70 (Spiro) | Numerical | Expired tidal volume measured using Y-piece spirometry. |
46 | AT | Tidal Volume In (Spiro) | mL | 560 | MP70 (Spiro) | Numerical | Inspired tidal volume measured using Y-piece spirometry. |
47 | AU | Minute Volume Exp (Spiro) | L | 5.1 | MP70 (Spiro) | Numerical | Expired minute volume measured using Y-piece spirometry. |
48 | AV | Minute Volume In (Spiro) | L | 5.7 | MP70 (Spiro) | Numerical | Inspired minute volume measured using Y-piece spirometry. |
49 | AW | Lung Compliance (Spiro) | L / cm H2O | 63 | MP70 (Spiro) | Numerical | Lung compliance measured using spirometry. |
50 | AX | Airway Resistance (Spiro) | cm H2O / L s-1 | 15 | MP70 (Spiro) | Numerical | Airway resistance measured using spirometry. |
51 | AY | Max Inspiratory Pressure (Spiro) | cm H2O | 10 | MP70 (Spiro) | Numerical | Maximum pressure measured during the inspiratory cycle using spirometry. |
52 | AZ | ECG | mV | 1.13500 | MP70, MP30 | Waveform | Instantaneous data sample for the ECG waveform. |
53 | BA | Pleth | [0, 1] | 0.67179 | MP70, MP30 | Waveform | Instantaneous data sample for the pulse oximeter's photoplethsymograph waveform. |
54 | BB | CO2 | mm Hg | 15.1 | MP30 | Waveform | Instaneous data sample for the arterial blood pressure waveform. |
55 | BC | ART | mm Hg | 117.3125 | MP70 | Waveform | Instaneous data sample for CO2 waveform measured using sidestream capnography. |
56 | BD | EEG | - | 21.01649 | MP70 (BIS) | Waveform | Instaneous data sample for the EEG waveform measured with the bispectral index (BIS) monitor. |
57 | BE | AWP | cm H2O | 2.66648 | Aestiva/5 | Waveform | Instantaneous data sample for the airway pressure measured with the ventilator. Positive values represent higher pressure in the patient's airway; negative values represent higher pressure in the ventilator. |
58 | BF | AWF | L/s | 4.92267 | Aestiva/5 | Waveform | Instantaneous data sample for the airway flow measured with the ventilator. Positive values represent flow towards the patient; negative values represent flow towards the ventilator. |
59 | BG | AWV | mL | 400.2 | Aestiva/5 | Waveform | Instantaneous data sample for the inspired volume since the start of breath measured with the ventilator. Consecutively increasing values represent inspiration; decreasing values represent expiration. |
60 | BH | AWP-Spiro | cm H2O | 2.84 | MP70 (Spiro) | Waveform | Instantaneous data sample for the airway pressure measured with Y-piece spirometry. Positive values represent higher pressure in the patient's airway; negative values represent higher pressure in the ventilator. |
61 | BI | AWF-Spiro | L/s | 21.52 | MP70 (Spiro) | Waveform | Instantaneous data sample for the airway flow measured with Y-piece spirometry. Positive values represent flow towards the patient; negative values represent flow towards the ventilator. |
62 | BJ | AWV-Spiro | mL | 550.6 | MP70 (Spiro) | Waveform | Instantaneous data sample for the inspired volume since the start of breath measured with Y-piece spirometry. Consecutively increasing values represent inspiration; decreasing values represent expiration. |
63 | BK | Num Patient Alarms | - | 2 | MP70 | Numerical | Number of patient alarms (relating to the patient's physiological status) currently active. |
64 | BL | Num Technical Alarms | - | 1 | MP70 | Numerical | Number of technical alarms (relating to the operation of sensors) currently active. |
65+ | BM+ | Alarms | Alarm1, | - | MP70 | Text | Comma-separated list of alarm messages currently active, with patient alarms first followed by technical alarms. The total number of alarms is given by Num Patient Alarms + Num Technical Alarms . |
a The column number can be used with UNIX command line tools, for example cut -d , -f 4 uq_vsd_case01_fulldata_??.csv
will retrieve all of the heart rate values from Case 1 (which are stored in Column 4).
b The alphabetical column identifier assigned when a Full Data .csv
file is imported into Microsoft Excel.
c The column names are stored in the first row of each .csv
Full Data file.
d Examples provided are in the format of the actual values in the .csv
data files, e.g. the number of decimal places provided.
